Getting Rift Sawn Figure by Hand

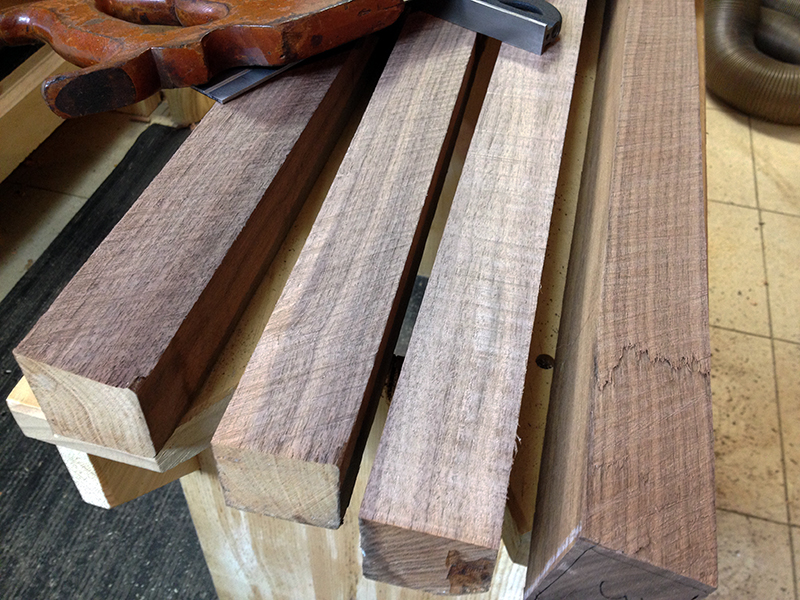

riftsawn leg stock

Notice the angled faces sawn to orient the legs in a riftsawn aspect. Can you spot the one bandsawn leg?

I’ll admit it.  I get lazy sometimes and rip out stock on my band saw.  I know how to saw a line at any angle and I’m confident in dimensioning stock using hand methods.  But when the lazy bug bites the band saw is a seductive short cut…assuming it is tuned and working properly.  The fact of the matter is I work by hand faster than my ill tuned band saw.

I was dimensioning some 8/4 Walnut to make table legs this weekend.  In order to get optimal rift sawn figure on all 4 faces I had to twist the 1 5/8″ square I needed outside the plane of the board on 2 of the legs.  Rather than set up my band saw table to match the angle I just dropped the 10″ wide Walnut board on my saw bench and ripped those legs out.  It took 4 minutes 18 seconds including the layout time. (I was filming so I’m sure of the time)

Then the lazy bug sunk his teeth in and I figured I would cut out the 2 remaining legs that didn’t have to be sawn at an angle on my band saw.  Apparently my fence has moved or something is off the way the blade is tracking because I gave up on ripping the leg after 4 minutes of crawling through the cut as the motor kept bogging down.  Add to that the time it took to wheel my band saw away from the wall, tension the blade, set the fence, and hook up dust collection and I easily spent more time to cut half a leg than I took to rip out 2 legs positioned at an odd angle.

draw knife rift sawn legsAt this point my tired arm had recovered so I went back to the saw bench and finished the rip then ripped out the last leg in exactly 1 minute, 32 seconds.  I guess I saw faster vertically.

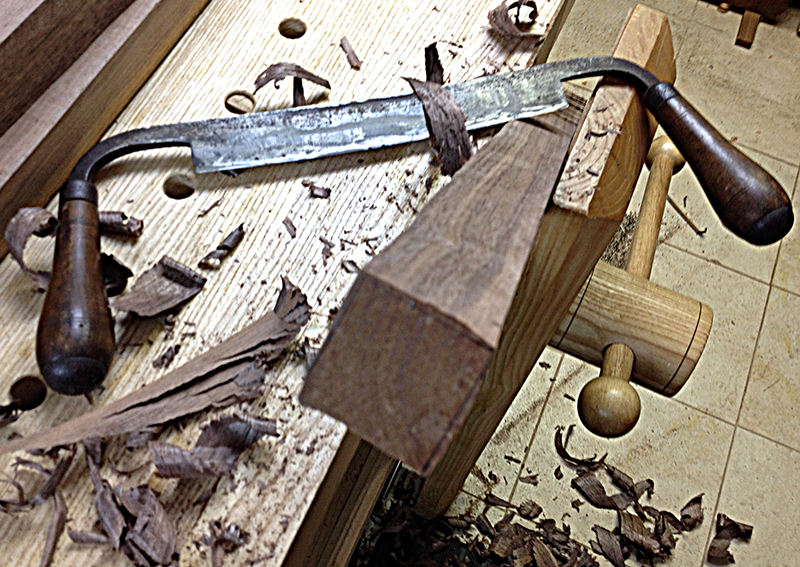

I then trued up the odd angled blanks using my draw knife and the board secured in my leg vise.  That took about 20 seconds a piece and I was ready to plane the legs flat and smooth with the jointer plane; something I would have had to do with the bandsawn legs anyway.  Frankly anything I can do to use my draw knife is good because I really love that tool.  I derive an instinctual, almost visceral pleasure when quickly peeling away wood.  It never ceases to amaze me how one tool can remove wood so fast yet still be so accurate at refining a rough board to a flat and square block.

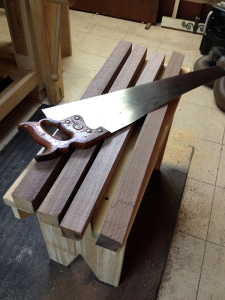

hand sawing legsTaking a time out to tune up my band saw is in order and I could have significantly sped up this whole process, but I wonder how much time I would have really saved.  For that matter, why is that important?  I can certainly use the exercise and at 38 years old I have no excuse to prevent me from doing this hard work…other than laziness.  I’m far from the physical condition I was in 10 years ago and what better way to get back in shape than using the tools I love.  For hand tool guys like me, using a power tool is often classified as “cheating”.  I don’t believe there is such a thing as cheating in woodworking, but I think it is fair to say I’m cheating myself.  Why have I hung on to my few remaining power tools that I don’t particularly enjoy using?  It seems no other reason that just laziness.  Maybe I won’t tune up that band saw after all.  What’s the worst that could happen?  I get into better shape and further hone my skills.

Leave a Comment:

All fields with “*” are required

Nick Roulleau (@MansFineFurn)

What spectacular timing. I just drafted a post very apropos which I’ll be posting next week for Get Woodworking week. I’ll add a link back here as “supporting evidence”

    Shannon

    What a coincidence, I was prepping stock for a Get Woodworking Week project

Wilbur

I agree with everything you say, but from your description of your bandsaw troubles, it sounds like you need a new bandsaw blade. Or at least a sharper one.

    Shannon

    It is a new blade bought less than a month ago. It is the fence as I knocked it off the table recently and it banged on the concrete. I’m sure it is all out of whack. When I put the new blade on a few weeks back and retuned it was humming along nicely and resawing perfectly so that is the only variable I can think of.

      Wilbur

      The description of it taking 4 minutes to make that cut and the motor bogging down made me think about a dull blade. Even if you freehanded that cut, it shouldn’t take that long. Unless that fence is that far out of whack that the blade is binding in the kerf, in which case freehanding it might be a better option.

        Shannon

        I checked my records and sure enough I just bought a new Woodslicer blade 3 weeks ago. Considering the one I replaced lasted more than a year I think blade sharpness can be removed from the equation. This was bugging me last night however and I made some other cuts. 3/4 and thinner stock cuts like butter with no binding at the fence and an accurate cut which tells me my blade drift is set right. It is only on 8/4 and thicker where the problem arises which may be binding vertically. I ran out of time before I was able to make some free hand cuts but I’ll keep playing around with it.
