Joinery Bench Not So Rough Cuts

4 comments
13 years ago
Joinery Workbench

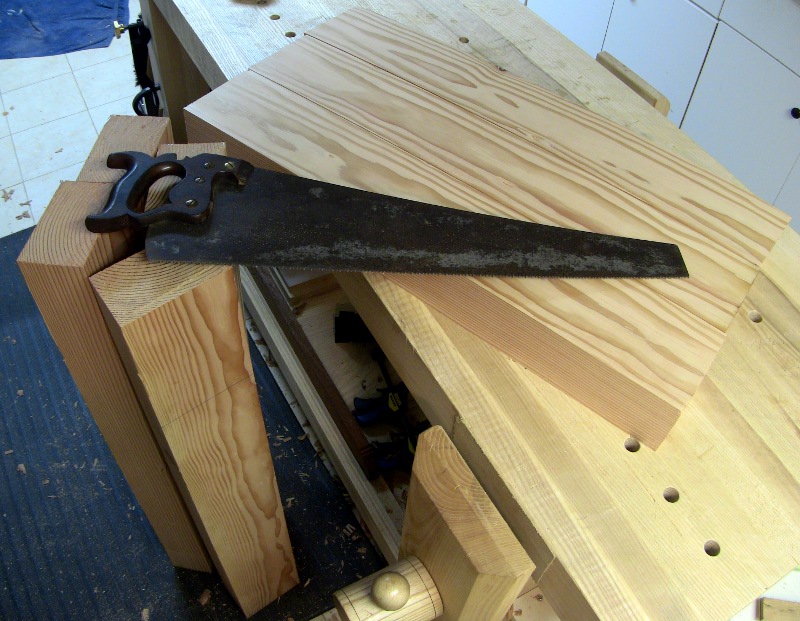

Douglas Fir Joinery Bench Rough Cuts

Top and 4 legs ready for joinery

The first steps in my Joinery bench build entails laying out some rough cuts and selecting which pieces will be best for the top and legs.  While this Douglas Fir is very clear, there is an errant tight knot here and there and I would rather not (pun intended) have one on the top surface.  More importantly though is keeping a knot away from the joinery areas.  Planing a knot is easier than chopping through one for a mortise.

I determined that my legs will need to be 40″ to set my bench at the proper height just below my bent elbow and I used the least clear stock for these parts.  I saved the completely clear sections to cut out 3, 32″ long sections for the top.  While I will be truing up the top after it is glued together it will save time to make highly accurate cross cuts now that are square and plumb.  This is done by laying out your cut line on all 4 sides of the board.  Start a kerf on each of those lines thus connecting the dots and providing a guide to keep your saw on line through a thick timber.

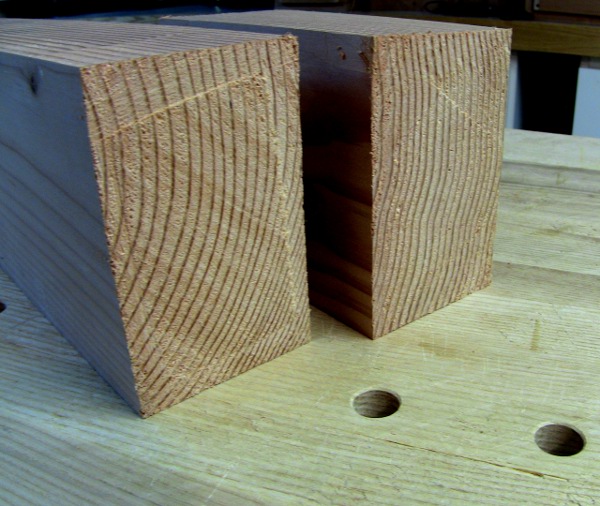

Saw marks on large Douglas Fir timbers

Here you can see the outline of my starting kerfs.



The process leaves interesting tool marks but yields a dead accurate board within 1/32nd of my finished length that is dead square.  Working with a softwood after even Cherry is like cutting butter and it was lots of fun to make these cuts.  My freshly sharpened 7 ppi Disston saw cut like it was on autopilot and before I knew it I had my 4 legs and 3 top parts sized and ready for joinery.



Next I’ll be squaring the edge for the two glue lines in the top.

Leave a Comment:

All fields with “*” are required

Bobby Slack

I think your choice of material is brilliant. I also think as an mostly power tool and hand tool fitting woodworker a joinery bench is the way to go for me.
I was looking for a bench for a long time and probably you have really nailed it. Making the bench high …
I dig … I dig mucho

Doug F.

That looks like it works really well. Can you get the same results by making deep cuts with a marking knife when you lay the cut out? It has worked pretty well for me in the past, but I don’t think I’ve tried it on anything as thick as what’s in the photos.

    Shannon

    Doug, you would get better results with a marking knife and I will do that when it comes time to size these parts exactly. In that instance I will plane to the marking line however.

Erik Gilling

I’m take Jay Van Arsdale’s japanese hand tools and joinery class and this reminds me of the sawing technique he showed us last week. He starts the cut on the far corner, saws across the top face following his layout line, then rotates the piece as he saws around it keeping the saw in the kerf the whole time to ensure squareness.
